Maximise floor space below and above ground. Build basements, columns, walls, retention tanks and more with Rediwall a versatile permanent formwork system that can cut installation time in half compared to traditional masonry and blockwork methods.
AFS Rediwall is a versatile permanent formwork system for below and above ground wall applications. Its innovative system is made of prefabricated, high-quality PVC panels and interconnecting components that simply snap or slide into place requiring no crane or specialist equipment.
Rediwall is a tough, low-maintenance load-bearing reinforced concrete solution which can cut your installation times in half compared to traditional masonry and blockwork methods. The bright, clean semi-gloss surface provides a serviceable, water-resistant finish ready to paint, render or board.
DBM Supplies stocks and distributes Rediwall across Australia — offering competitive project pricing, fast delivery direct to site, and expert technical support.
Rediwall — permanent PVC formwork for above and below ground walls
Rediwall’s reputation is built on decades of proven performance across residential, commercial and industrial construction in Australia and beyond.
CodeMark Certified, NCC compliant and meets all relevant requirements for structural, load-bearing reinforced concrete walls designed in accordance with AS3600-2018. Fire rating up to FRL 240/240/240.
Industry-leading range with six profile widths in one solution, suitable for almost any internal or external walling, columns or pit/tank application above or below ground.
Proven for multi-level structures both above and below ground with simple single and double reinforcement options for structural confidence on every project.
Lightweight panels snap or slide into place with no crane or speciality equipment required cutting installation times in half compared to traditional blockwork.
Offers a consistently even, water-resistant and durable surface with a superior semi-gloss finish serviceable for carparks and internal walls without further treatment.
Stock orders delivered in 2 business days (NSW/ACT/VIC/QLD) and up to 4 days (SA). Cut-to-length orders available with defined lead times.

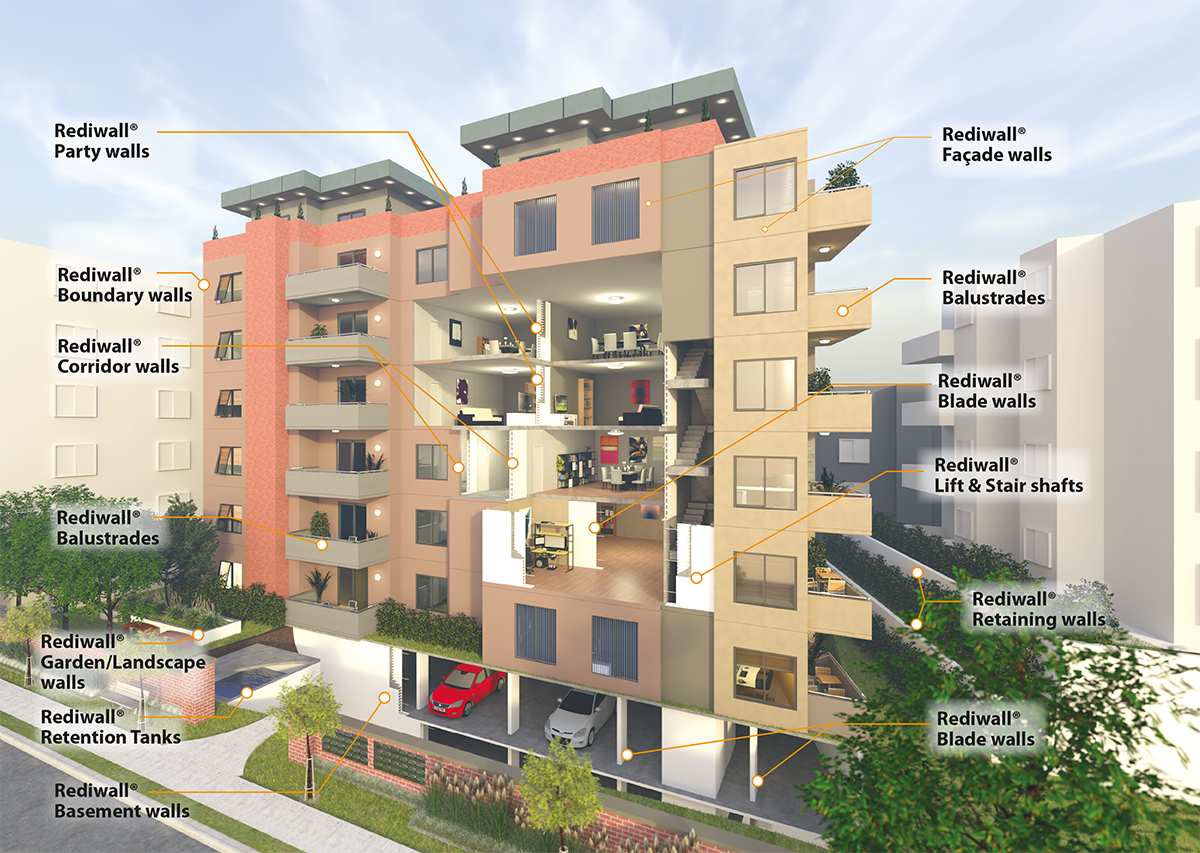

An innovative walling system for above and below ground applications Rediwall is suitable for residential, multi-residential, commercial, education, healthcare and aged care projects.
Rediwall permanent PVC formwork for above and below ground walls
From 110mm to 300mm wall thickness, Rediwall offers the most complete profile range of any permanent formwork system in Australia.
WALL PROFILE
WALL PROFILE
WALL PROFILE
WALL PROFILE
WALL PROFILE
Rediwall panels are lightweight and can be installed by hand no crane or specialist equipment needed. Follow the simple 7-step process below.

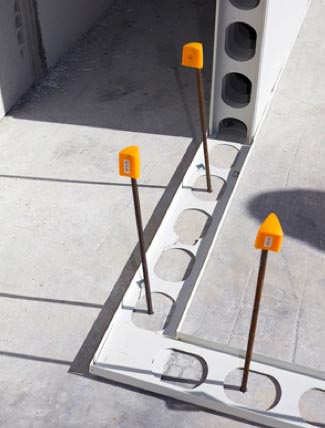

Install the PVC floor track or floor angle first to set the bottom line of the wall. Large holes accommodate starter bars and fix panels precisely to the foundation or slab.

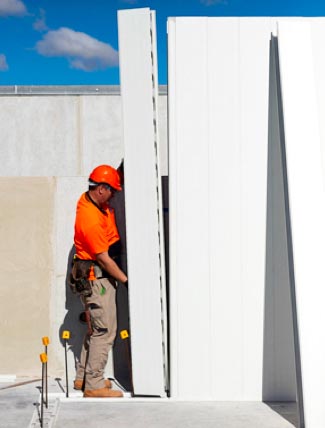

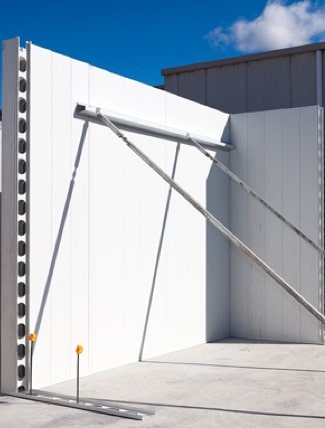

Start at a corner — install a corner panel with standard panels and joiners, then brace and check for plumb. PVC modules form the concrete formwork and locate reinforcement to achieve correct cover.

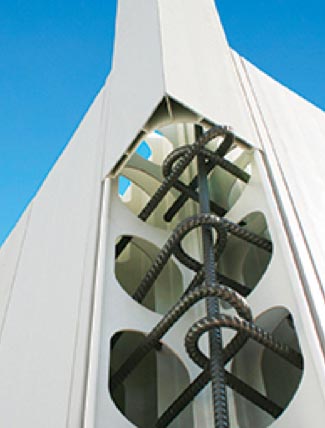

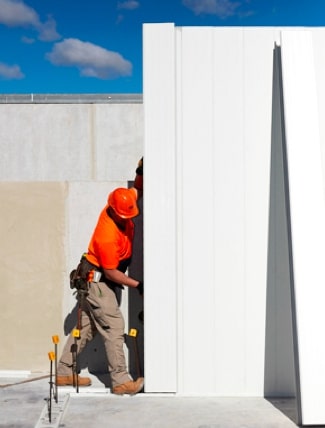

Proceed along the wall by sliding (256mm–300mm) or snapping (110mm–200mm) adjacent panels together. Place panels tight into the floor track and brace throughout.

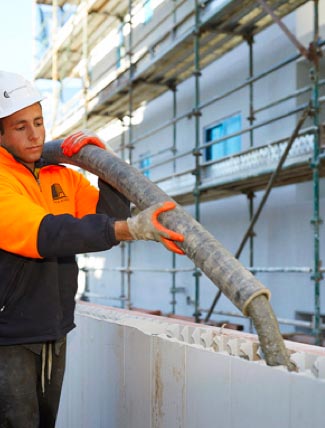

Core-fill with concrete using a boom pump per AFS’ recommended mix design specification. Once cured, walls are ready for the next floor slab or roof assembly.

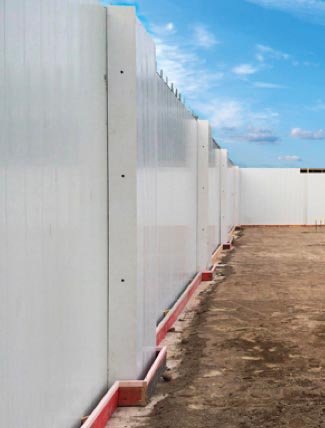

The semi-gloss PVC surface requires no further treatment for carpark and internal applications. Paint, render or board the panels for your preferred final finish.
Achieve a variety of compliant walling solutions with the wide range of Rediwall accessories designed to integrate seamlessly into the panel system.
Integrates into the RW200 interlocking panel system for curved walls. Minimum 0.5m radius available in 15-degree segments, 3m and 3.6m heights. No cutting or drilling required on site.
The AFS VBL allows for faster, more accurate placement of reinforcement bars making insertion quicker and easier with more accurate concrete coverage. Available in VBL 200, VBL250+ and VBL 256.
A three-piece PVC panel forming a 90-degree corner between walls. Allows removal of the outside corner cap for easy placement and inspection of internal reinforcement. Available for 110mm, 156mm and 200mm.
Slide-together PVC panels used horizontally on external walls as a bottom track for the next panel level, or vertically as a wall make-up piece in gaps of 50mm or less.
Used horizontally where an edge-form slab is to be formed. Acts as a bottom track for the next panel level and assists with edge-form preparation on external walls.
The PVC floor track sets the bottom wall line with large holes for starter bars. PVC end caps or fibre cement strips cap off wall ends and openings for a clean, finished edge.

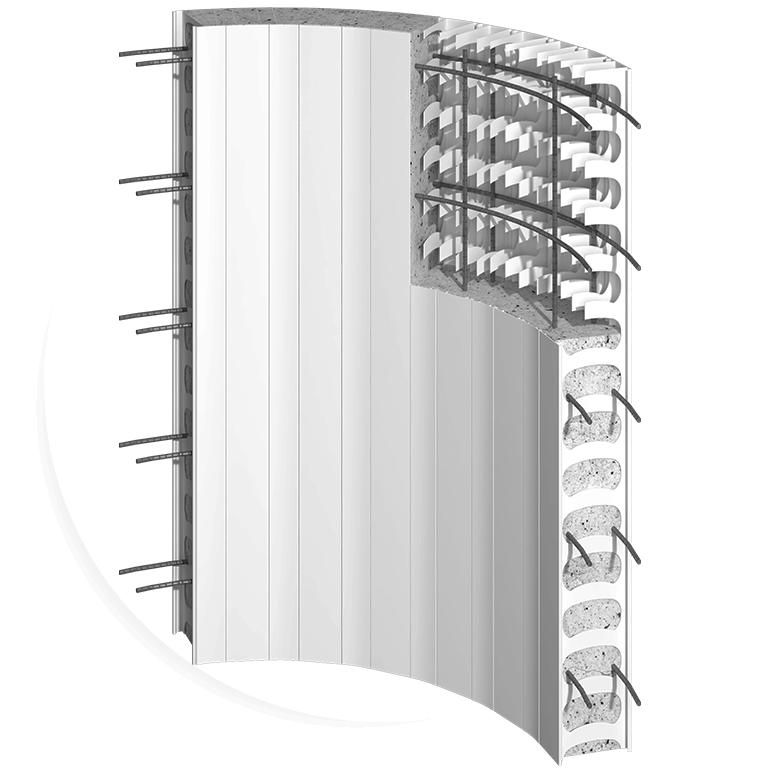

The new Rediwall 200 Curve Panel — the new shape in permanent formwork. Combining functionality with style to deliver a simple solution for on-trend curved walls. Easy to install with no cutting or drilling required on site.
Optimised for buildings of up to eight storeys with mixed framing or column frame structural arrangements, the new Rediwall Blade Columns increase efficiencies and help minimise construction costs.

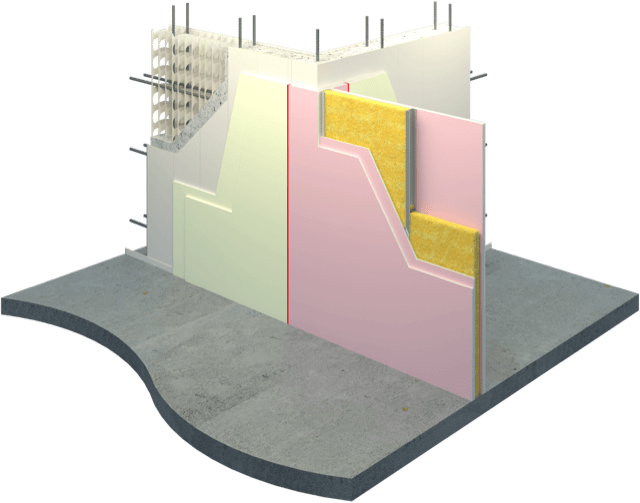

The new range of Rediwall fire junction solutions allow for connection to various wall types without the need to remove the PVC facing reducing costs, speeding up installation and providing greater versatility in design.
Fire tested and assessed to AS1530.4 – 2014 for easy integration with various fire rated systems.
FRL Performance (AS1530.4)

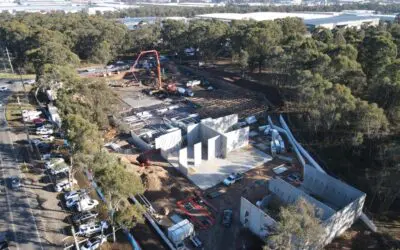

Rediwall has been trusted on projects across Australia from residential mansions and multi-storey apartments to action parks and large-scale commercial developments.
Rediwall had a significant impact on the Prestons design by providing a trifecta of advantages speed, structural performance, and low-maintenance finish across all wall applications.
Easy-to-use Rediwall was chosen for lift core walls, fire stair core walls and columns helping Jasara Constructions reach great heights on their new Eden residential project.
TZ Constructions used Rediwall throughout from basement walls to penthouse levels praising the product quality and outstanding technical support from the supply team.

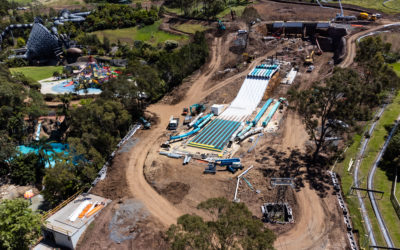

So impressed with Rediwall in building his own home, the owner of Jamberoo Action Park chose the system for the park’s latest world-class water attraction structures.
Rediwall PVC permanent formwork is compliant with the National Construction Code (NCC) and Australian Standard AS3600-2018 for reinforced concrete structures. CodeMark® certified the ABCB’s third-party building product certification scheme.
Panels interlocked, core-filled and exposed to 6m hydrostatic head of pressure for 100 hours passed with no water penetration (ASTM E514 / AS/NZS 4347.1), independently certified by CSIRO.

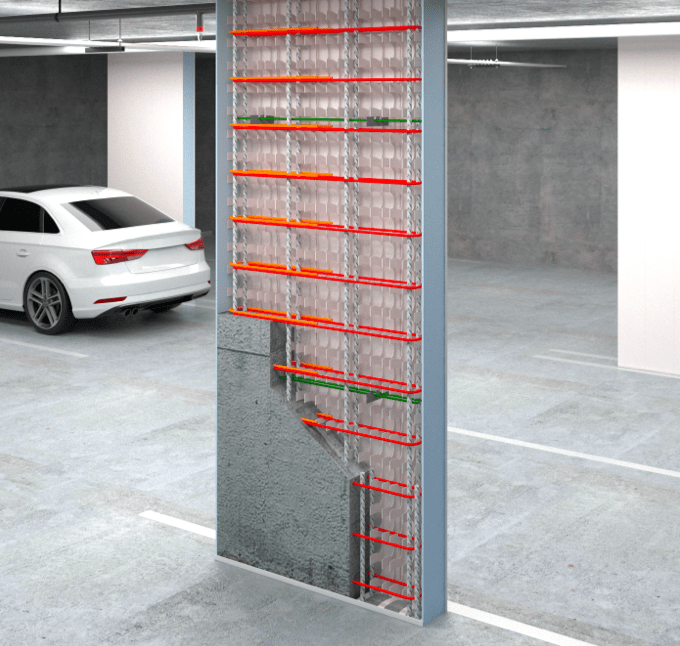

Rediwall is a permanent PVC formwork system for above and below ground wall applications. Prefabricated panels snap or slide into place to form the walls, which are then filled with reinforced concrete — leaving the PVC as a permanent, low-maintenance finish.
Rediwall is available in six widths: 110mm, 156mm, 200mm, 256mm, 275mm and 300mm. Each profile offers different acoustic, fire and structural ratings to suit your project requirements.
Yes. Rediwall holds CodeMark Certification (CM30107) confirming compliance with the NCC for fire resistance, structural stability, thermal/acoustic performance, weatherproofing, bushfire provisions and termite resistance.
FRL ratings range from 90/90/90 (RW 110) up to 240/240/240 (RW 156–RW 300), all tested and assessed to AS1530.4 — providing the highest level of fire performance available in permanent formwork.
Stock orders are delivered in 2 business days (NSW/ACT/VIC/QLD) and 4 business days (SA). Cut-to-length orders are delivered in up to 6 days (NSW/ACT) and up to 8 days (QLD/VIC/SA).
Yes — simply submit your plans to our team. We provide quick take-offs within 12–24 hours and full estimates within 4–6 business days, with BOQ, supply quotes and installer quotes included.
